fix(editor): honor millimeter notation across measurement panels

[FenjuFu]

What does this PR do?

Fixes #374. Measurement property controls now read both unit and metricNotation, so millimeter mode displays and accepts millimeters while scene values remain in meters. Input hints, precision, and keyboard/drag increments use the displayed unit.

The panel audit also found 178 meter-value props rounded before reaching the controls. Removing that repeated display rounding lets the controls format the original values: entering 2501 mm now stores 2.501 m and still displays 2501 mm after the panel rerenders.

The shared controls cover the door, window, roof, column, slab, fence, and descriptor-driven inspectors. The mechanical migration spans 26 panel files; its AST checks verified that callbacks, bounds, steps, precision props, and non-meter controls were preserved. Per-control migration evidence.

How to test

1. Set metric notation to millimeters and edit a roof's X position to 2501. Verify the scene node stores 2.501 and the panel continues to show 2501 mm.
2. Switch to imperial and back; verify the node position is unchanged. Exercise bare numbers, explicit units, bounds, and keyboard/drag increments in both shared controls.
3. Run bun test ./packages/editor/src/lib/linear-display.test.ts.

Validation completed: 5 unit tests with 72 assertions; 22 browser interaction checks; and an actual RoofPanel/SliderControl/useScene regression confirming the 2501 mm → 2.501 m → 2501 mm round trip. Rendering the original panel against the same stored node reproduced 2500 mm. The component browser setup isolates unrelated action/presentation wrappers; it is not a full editor E2E run. Configured Biome and whitespace checks passed; the two normally excluded UI-control files were formatted separately.

Level-height badges also use the shared display precision: nine direct production-path checks passed for integer millimeters and the existing meter/foot readouts. Full fork CI for the current head passed the Linux quality pipeline (lint, skill checks, typecheck, full test suite and builds) and the macOS packed CLI/runtime smoke test. The validation workflow entry is isolated from this PR.

Screenshots / screen recording

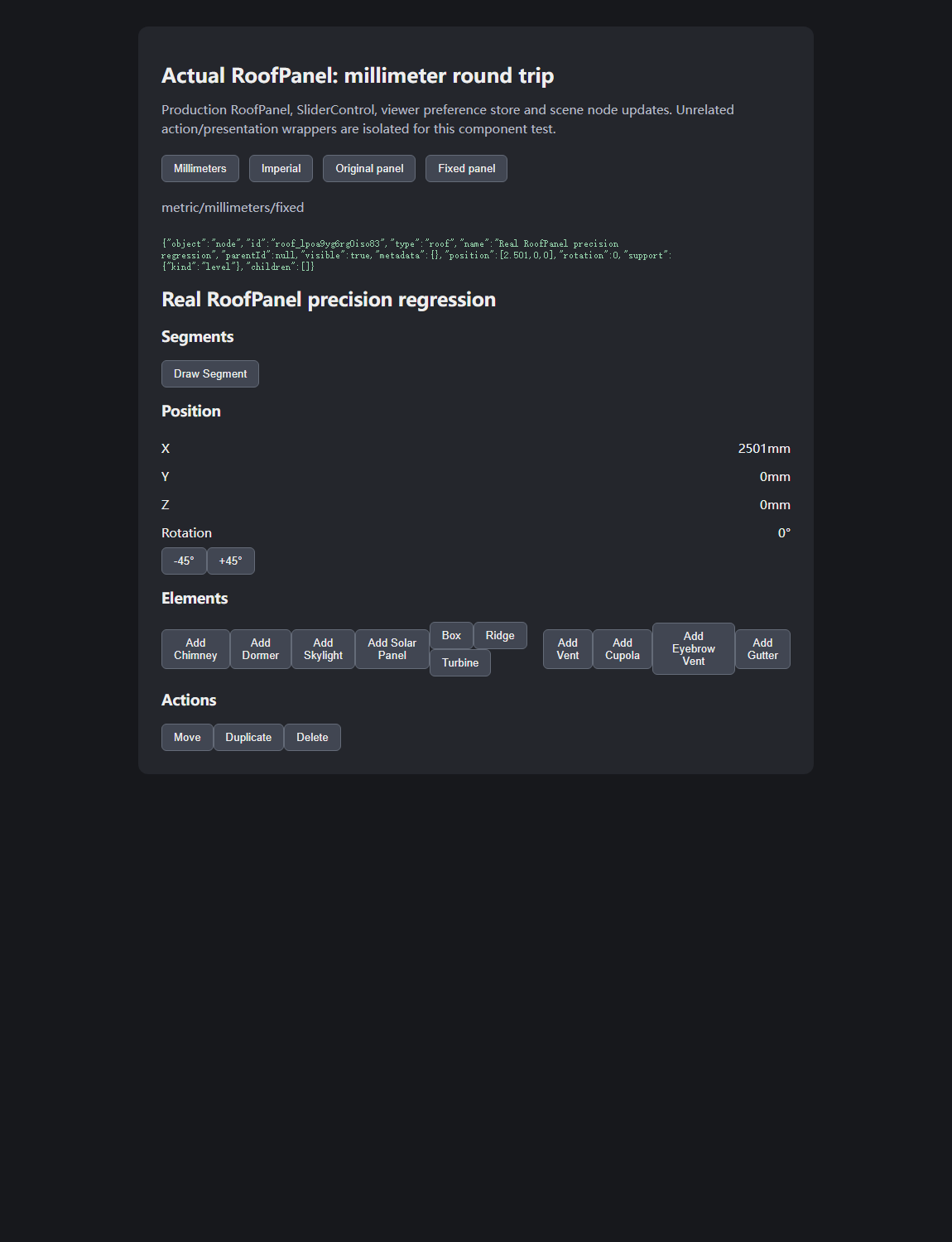

Actual RoofPanel component regression: original panel · fixed panel.

Both screenshots use the same stored X position of 2.501 m.

Checklist

• I've tested this locally with bun dev (tested the actual components in Chromium; full application validation passed in CI)
• My code follows the existing code style
• I've updated relevant documentation (not applicable)
• This PR targets the main branch
