Digimon Digital Card Battle decomp

Version	Code	Data	Functions
🇺🇸 USA (SLUS_013.28)
🇯🇵 Japan (SLPS_025.06)
🇪🇺 Europe (SLES_039.00)

A matching decompilation of Digimon Digital Card Battle for the PlayStation: C source that compiles back into byte-identical copies of the game's executable and of its overlays. The USA, Japanese and European releases are all fully matched, code and data, from the same source tree.

This repository does not contain any game data. You need your own copy of the game to build it.

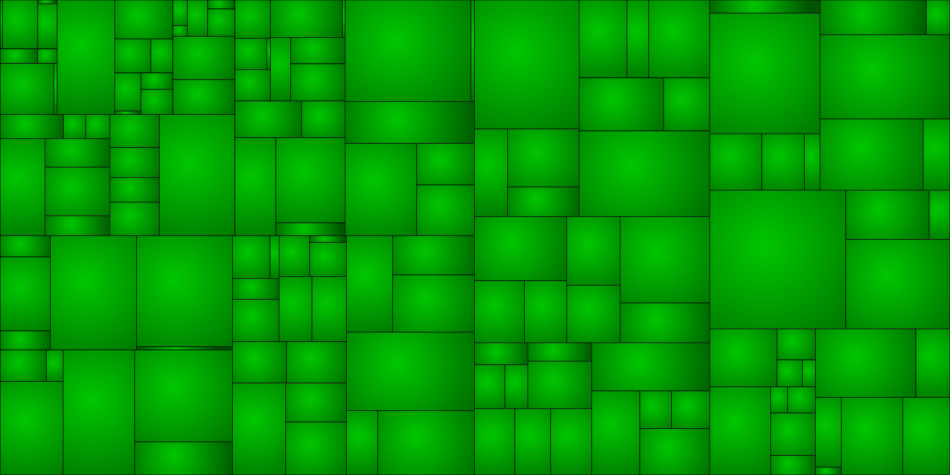

_{Each rectangle is a module, sized by its code; green means it matches. Click it for the details on decomp.dev.}

Status

Every version is at 100 % of its code and 100 % of its data:

Version	Executable	Overlays	Game functions	Code	Data
us (SLUS_013.28)	506 / 506	864 / 864	1,370 / 1,370	100 %	100 %
jp (SLPS_025.06)	531 / 531	660 / 660	1,191 / 1,191	100 %	100 %
eu (SLES_039.00)	506 / 506	1,092 / 1,092	1,598 / 1,598	100 %	100 %

• Every function of the game, in the executable and in the overlays, is C that compiles to the original bytes. No INCLUDE_ASM or INCLUDE_RODATA is left in the game's code.
• Jump tables, strings and constants live in the C of the function that uses them. Tables and globals are written in C in the module that defines them. Each overlay's zeroed data is laid out in its <prefix>_bss.c.
• Code that was written in assembly stays as assembly source, with a comment saying what shows it is hand-written. Examples are the task switching and interrupt glue (src/main/startup.s), the soft-float routines (src/main/libmath.s) and some PsyQ objects.
• Functions and globals carry descriptive names taken from the evidence: the strings they use, the SDK calls they make, and the data they touch. The versions share their names.
• The PsyQ 4.7 libraries linked into the USA executable are decompiled too, one file per library object. They are not the game's code, so they are left out of the progress. The 71 PsyQ functions still in assembly are mostly BIOS call stubs and register-level code, plus a few near misses. In jp and eu the libraries, the start-up code and the soft-float routines are still splat's disassembly.

Progress is measured by objdiff with one unit per module. It is tracked on decomp.dev, which comments on every pull request with what it changes.

Fake matches and hacks

The matched C is meant to read as natural C, but some spots only match through a form that natural C wouldn't take for granted. Each one carries a comment that says so, in one of three standard forms (CONTRIBUTING.md has the rules), and the badge above counts them: fake matches, then the other two kinds together.

Kind	Count	Marker
Fake matches	8	a comment that starts with /* fake match: and says what is forced and why
Unused frame locals	96	/* unused, but it is in the original stack frame */
Form-dependent matches	36	a comment that says the match depends on the form
Functions still in assembly	71	INCLUDE_ASM

• A fake match is the last resort: a form forced only for the code it makes, such as an empty do {} while (0) that ends a CSE block or a variable that exists only to shape the code.
• An unused frame local, such as the char buf[72] of several window draw functions, is a local that the code never touches, kept because the original's stack frame has room for it: without it, the frame is smaller than the original's.
• A form-dependent match is C that matches in one of several equivalent forms only: a statement macro whose do {} while (0) weighs a variable's uses, an extra block, an if kept on one line or without braces, a copy of a variable, a type, or the form of a loop that each version's compiler needs.
• The functions still in assembly are not in the badge. They are all PsyQ's, in src/main/psyq/, and out of the progress.

tools/hacks.py --list lists every one with its file, line and function, and also the code that was written in assembly, which is not a hack (src/main/startup.s, src/main/libmath.s and some PsyQ objects, as .s files), and the padding that some objects have after their data, written as a top-level __asm__.

The CI checks with tools/hacks.py --check README.md that the badge and the table above are up to date. Work to replace them with natural C is ongoing: a pull request that matches one of them without the forced form is welcome. TODO.md lists them with the rest of what is left to polish.

The game's binaries

The executable loads one overlay at a time from P.DRV, at the end of its own .bss (OVERLAY_AREA, 0x801DDF38 in us). Each overlay has its own splat config, source folder and symbol prefix. The USA release's:

Binary	Prefix	Source	What it runs
SLUS_013.28		src/main/	the engine: tasks, rendering, models, windows and text, the card database, the duel loop, the scripts
OPENSEG	OPEN_	src/openseg/	the title screen and movies, user registration and the starter deck, memory card saves, friend battles and trades
SAISEG	SAI_	src/saiseg/	the areas and world map, opponent selection, area scripts, the hacking screen, Digi-Parts and rewards
SUBSEG	SUB_	src/subseg/	the deck editor (base and auto decks, sorting, naming) and the partner screen
EVOSEG	EVO_	src/evoseg/	card fusion and its results and rewards, the partner status, the cutscenes
KAWSEG	KAW_	src/kawseg/	the duel's rules: hands, bonuses, the CPU opponent, the tutorial, the duel menu and HUD, results, prizes and EXP
SUGSEG	SUG_	src/sugseg/	the 3D battle: its scene, camera and HUD, and the effect scripts behind every attack
ENDSEG	END_	src/endseg/	the player records screen shown by the ending and the menu

The Japanese release has two overlays that the USA one doesn't, and no OPENSEG or EVOSEG. The European release has all nine, its INTSEG and NISSEG from a Japanese debug build (How the versions are organised):

Binary	Prefix	Source	What it runs
INTSEG	INT_	src/intseg/	jp's new-game intro, where Babamon asks for the player's name and birthday and hands over a starter deck
NISSEG	NIS_	src/nisseg/	jp's title screen, card trade, VS mode and deck screens

Memory map of SLUS_013.28 (psylink puts .rodata in front of .text):

Section	Address
.rodata	0x80010000-0x80013E4C
.text	0x80013E4C-0x8006DD3C (game 0x80013E4C-0x8004A610, PsyQ after)
.data	0x8006DD3C-0x80077A08
.bss	0x80077A08-0x801DDF38

How the versions are organised

One source tree builds every version, one at a time, picked with VERSION (us by default):

VERSION	Release	Executable (SHA-1)	Overlays in P.DRV	Game code
us	USA, SLUS-01328	SLUS_013.28 (fa4e03b5e0671dce399a35f2747080ced492d2c3)	ENDSEG EVOSEG KAWSEG OPENSEG SAISEG SUBSEG SUGSEG	GCC 2.95.2
jp	Japan, SLPS-02506	SLPS_025.06 (447c5256757685728bfbecaf3b3b2e7c0164b6cc)	ENDSEG INTSEG KAWSEG NISSEG SAISEG SUBSEG SUGSEG	GCC 2.8.1, --expand-div
eu	Europe, SLES-03900	SLES_039.00 (050ae623135d5c233c255c9e76956eaeabd2fa6e)	ENDSEG INTSEG KAWSEG NISSEG SAISEG SUBSEG SUGSEG VSSVER OPENSEG EVOSEG	GCC 2.8.1

• mk/version/<version>.mk has each version's settings: the executable's name, the disc directory, the overlays, the compiler and the list of source files it builds. The Makefile builds nothing else.
• config/<version>/ has its splat configs, symbols and checksums; the generated asm/<version>/, build/<version>/, expected/<version>/ and assets/<version>/ are kept apart too.
• The C sees VERSION_US, VERSION_JP and VERSION_EU, each 0 or 1 (include/version.h), and so does the assembly. Small differences are #if blocks; a file whose contents differ throughout has one copy per version instead (<module>_jp.c next to <module>.c), which the report counts as the same unit. CONTRIBUTING.md has the rules.
• jp writes its text as UTF-8 in the C, like the other versions, and tools/sjis_escape.py re-encodes it as Shift JIS before cc1. Its code is assembled with ASPSX's expanded divisions (--expand-div). It draws its text with a kanji font of its own, 3,489 glyphs of 12x11 pixels in its executable: make VERSION=jp generate cuts it out of the disc as PNG sheets in assets/jp/ (tools/font.py, config/jp/fonts.txt), and the build turns the sheets back into the C that src/main/ui/str_util.c includes. An edited sheet goes into the build as it is.
• eu's INTSEG and NISSEG are not European: they are a Japanese debug build, linked against an executable that isn't eu's. eu compiles their C as jp's (-UVERSION_EU -DVERSION_JP, Shift JIS) with JP_DEBUG_BUILD, which turns on their debug code, and links them against that executable's names (config/eu/symbols_<overlay>_exe.txt). VSSVER isn't code but a Visual SourceSafe file that ended up in P.DRV; it stays one blob.
• The versions share their names: a function or global is called the same in every version, each at its own address (tools/rename.py, tools/check_names.py).

Toolchain

Game code, us	GCC 2.95.2 (-O1 -G0) + ASPSX 2.86, emulated with maspsx
Game code, jp and eu	GCC 2.8.1 (-O1 -G0) + ASPSX 2.86; jp's code and eu's NISSEG with divisions expanded (maspsx --expand-div)
SDK	PsyQ 4.7 in us (GCC 2.7.2 -O2, some objects SN GCC 2.8.1)
Splitting	splat
Diffing	objdiff 3.8.1, decomp.dev

The GCC 2.8.1 of jp and eu is PsyQ 4.4's own CC1PSX.EXE (GCC 2.8.1, SN32 build 4.0.0010): it compiles every object to the same bytes as the bin/gcc-2.8.1-psx the build uses.

The PsyQ objects need a binary-patched GCC 2.7.2 (tools/patch_cc1.py) and, for some objects, a patched SN GCC 2.8.1 (tools/sn_cc1.py). config/us/psyq_objects.txt says which compiler each object needs.

Building

Prerequisites

On Debian or Ubuntu (the CI uses Ubuntu 24.04 and Python 3.12), install:

binutils-mipsel-linux-gnu gcc-mipsel-linux-gnu git make python3 python3-venv unzip wget

Or skip this section and build in Docker (below).

Clone with the submodules (maspsx, m2c, decomp-permuter and the PsyQ headers):

git clone --recursive https://github.com/juandav/dcb_decomp.git
cd dcb_decomp
# or, in an existing clone:
git submodule update --init --recursive

Create the Python environment. Keep it active whenever you run make or the scripts in tools/:

python3 -m venv .venv
. .venv/bin/activate
pip3 install -r requirements.txt

Download the prebuilt tools into bin/, checked against tools/deps.sha256. They are GCC 2.95.2, 2.7.2 and 2.8.1 for the PSX, objdiff-cli and mkpsxiso:

tools/dl_deps.sh

Getting the game files

Each disc goes in its own disks/<version>/. Extract it with mkpsxiso's dumpsxiso and check the files the build reads, the executable and P.DRV, which holds the overlays:

bin/mkpsxiso-2.20-Linux/bin/dumpsxiso -x disks/us -s disks/us/us.xml "/path/to/the USA disc.bin"
sha1sum disks/us/SLUS_013.28   # fa4e03b5e0671dce399a35f2747080ced492d2c3
sha1sum disks/us/P.DRV         # c0fecd80c3b9160e72aacd5dcada21f6f7fdc343

bin/mkpsxiso-2.20-Linux/bin/dumpsxiso -x disks/jp -s disks/jp/jp.xml "/path/to/the Japanese disc.bin"
sha1sum disks/jp/SLPS_025.06   # 447c5256757685728bfbecaf3b3b2e7c0164b6cc
sha1sum disks/jp/P.DRV         # 5bf01a68b32fe474e6c28bd6fbb821e7cc82ad10

bin/mkpsxiso-2.20-Linux/bin/dumpsxiso -x disks/eu -s disks/eu/eu.xml "/path/to/the European disc.bin"
sha1sum disks/eu/SLES_039.00   # 050ae623135d5c233c255c9e76956eaeabd2fa6e
sha1sum disks/eu/P.DRV         # a6f3c764bddd6f5ceeb35b22dc6cc52981113157

Only disks/<version>/<executable> and disks/<version>/P.DRV are needed; you only need the discs of the versions you build. tools/extract_drv.py takes each overlay out of P.DRV, and config/<version>/overlays.sha1 holds their checksums.

Build

The same three steps build each version, with VERSION set to us, jp or eu (us when it is left out):

# Split the executable and the overlays with splat (asm/<version>/,
# build/<version>/generated/; for jp, also the font sheets in assets/jp/)
make VERSION=us generate

# Build build/<version>/<executable> and build/<version>/<OVERLAY>.BIN
make VERSION=us -j$(nproc)

# Check the executable and every overlay against the originals
make VERSION=us compare

make compare prints one OK per binary, and a change only counts once every line still says OK. For us:

build/us/SLUS_013.28: OK
build/us/ENDSEG.BIN: OK
build/us/EVOSEG.BIN: OK
build/us/KAWSEG.BIN: OK
build/us/OPENSEG.BIN: OK
build/us/SAISEG.BIN: OK
build/us/SUBSEG.BIN: OK
build/us/SUGSEG.BIN: OK

jp checks its executable and its 7 overlays, eu its executable and its 10 overlays. The CI builds and compares all three versions on every push.

make VERSION=<version> regenerate deletes asm/<version>/, build/<version>/ (and the patched compilers in build/tools/), expected/<version>/ and assets/<version>/, and splits the binaries again. Run it after changing a config/<version>/*.yaml, so that no stale files stay behind in asm/<version>/.

To use a different binutils or objdiff, create local.mk:

TOOLCHAIN := /path/to/mipsel-linux-gnu-
OBJDIFF := /path/to/objdiff-cli

Building with Docker

The Dockerfile gives the same environment as the CI: Ubuntu 24.04 with the MIPS binutils and cpp, Python 3.12 with requirements.txt, and the tools of tools/dl_deps.sh (in the image's /opt/dcb/bin, which it sets BIN_DIR to). The image holds no game data: tools/docker.sh builds it (quickly, once Docker has it cached) and runs a command in it with your clone, disks/ included, mounted at /dcb, as your own user. Clone with the submodules and put the disc files in disks/ as above, then:

tools/docker.sh make VERSION=us generate
tools/docker.sh make VERSION=us -j$(nproc)
tools/docker.sh make VERSION=us compare

# a shell in the container
tools/docker.sh

The prebuilt tools are x86 Linux binaries, so the image is linux/amd64. dumpsxiso is in the image too, as /opt/dcb/bin/mkpsxiso-2.20-Linux/bin/dumpsxiso, for a disc image inside your clone.

Progress

# Write objdiff.json and the target objects in expected/<version>/
make VERSION=us objdiff

# Write build/<version>/report.json
make VERSION=us report

After make objdiff, open the repository in the objdiff GUI to see each module's functions and data against the original. tools/objdiff_generate.py makes one unit per module (main/<subsystem>/<module>, <overlay>/<subsystem>/<module>) and sorts them into the executable and overlays categories. It leaves psyq and libmath out. objdiff.json is for the version it was last written for.

The CI (.github/workflows/build.yaml) builds each version on every push, runs make compare and make report, and uploads the reports that decomp.dev reads. The original files come from a private repository, so pull requests from forks are not built.

Layout

Path	Contents
src/main/	the executable: main.c, startup.s, the soft-float library, and one folder per subsystem
src/main/system/	start-up (boot), the task scheduler (task), the render loop and vblank, the heap, CD files, the file loader, pak archives and their decompressor, pads, memory card saves, sound and music, and the flow between the game's screens (game_flow, game_exit)
src/main/gfx/	display set-up, VRAM uploads, primitives and their helpers, 3D primitives, transforms, the TMD sorter, the screen fade and copy effects, the scrolling menu background
src/main/model/	loading models, starting and evaluating their animations, the 3D scene and its camera, the floor grid, the duel stages, effect objects and particles
src/main/ui/	windows, menus, dialogs, text drawing, string helpers, the hacking screen
src/main/duel/	starting a duel, its set-up and session, the duel loop, the CPU opponent, each player's card zones, card movement, the battle HUD and its panels
src/main/card/	the card database and collection, partners and their levels, player profiles and ranks, card rendering
src/main/script/	the script interpreter
src/main/psyq/	the PsyQ libraries, one file per library object (.c, or .s for a hand-written object)
src/<overlay>/	each overlay, split by subsystem like the executable (src/openseg/title/, src/kawseg/cpu/, ...)
include/game.h	types and declarations shared by several modules
include/dcb/	one header per module (<module>.h, <prefix>_<module>.h) and one per overlay (<overlay>.h)
include/	common headers, PsyQ and GTE helpers (gte.h), assembler macros
config/<version>/	the version's splat configs (main.yaml, <overlay>.yaml), symbols (symbols.txt, symbols_<overlay>.txt), checksums; us's PsyQ object list, jp's font tables
mk/version/	each version's settings for the Makefile: the executable's name, the disc directory, the overlays, the compiler, the source files
tools/	build helpers, try_match.py, asm_source.py, extract_drv.py, hacks.py, the report generator
Dockerfile, tools/docker.sh	the build environment as a Docker image, and the script that runs a command in it
asm/<version>/, expected/<version>/, build/<version>/	generated; not in git
assets/<version>/	the version's graphics as PNG (jp's font), extracted from the disc by make generate; not in git

Contributing

Read CONTRIBUTING.md for the rules on matching, layout, names and pull requests. TODO.md lists what is left to polish: the fake matches and hacks, the names still missing, PsyQ, readability and tooling.

Some helpers, for the PsyQ functions that are still assembly or for checking a change to matched code:

• python3 external/m2c/m2c.py <file>.s gives a first draft of a function, from the .s file its INCLUDE_ASM line names (its folder is under asm/<version>/).
• tools/try_match.py draft.c [func ...] compiles a draft with the project's compiler and compares each function with the original. It prints both side by side when they differ. Set OVERLAY=<overlay> for an overlay's functions, and add --psyq, --gcc28 or --nocse for PsyQ code. It needs asm/<version>/ from make generate; --version (or VERSION) picks the version, us by default.
• decomp-permuter (in external/) searches for C that matches a near miss.
• objdiff (see Progress) shows the differences per function inside the whole module.

The PsyQ functions were named from the PsyQ 4.7 signatures.

Links

• decomp.dev: Digimon Digital Card Battle
• Inspired by these projects: Digimon World decomp, Digimon World 2 decomp.
• Tools: splat, maspsx, objdiff, m2c, decomp-permuter, old-gcc (the PSX GCC builds), mkpsxiso, psyq_headers.
