fix(core): stop transport re-seek from clobbering Studio drag drafts

[miguel-heygen]

What

Dragging a GSAP x/y-controlled element in the Studio preview froze the element at its current animated position while only the selection box tracked the cursor; the element then snapped to the correct spot on drop. The committed result was always correct — only the in-drag visual was wrong.

Before vs. after

Same +240px drag of the x + scale box at a mid-animation playhead:

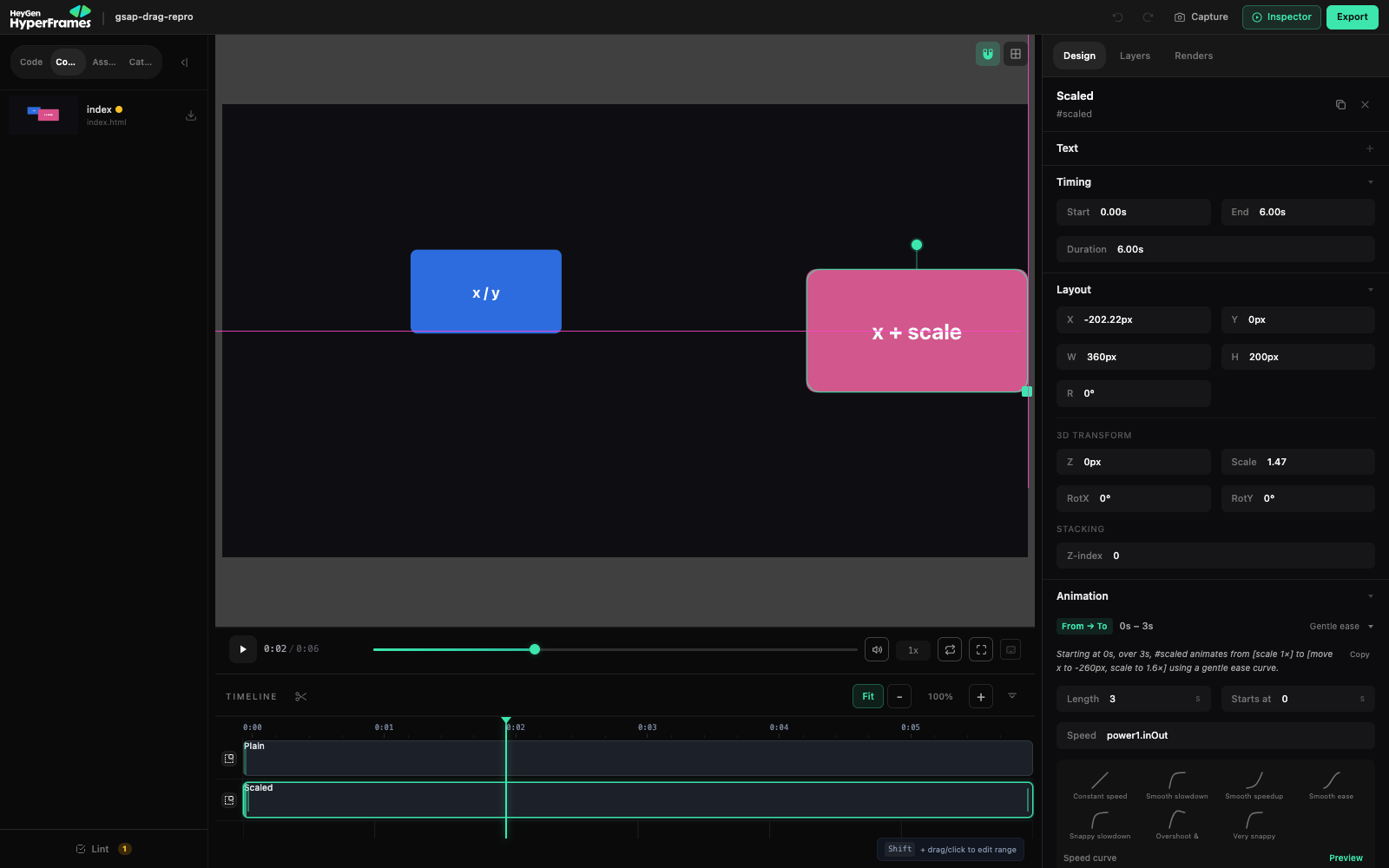

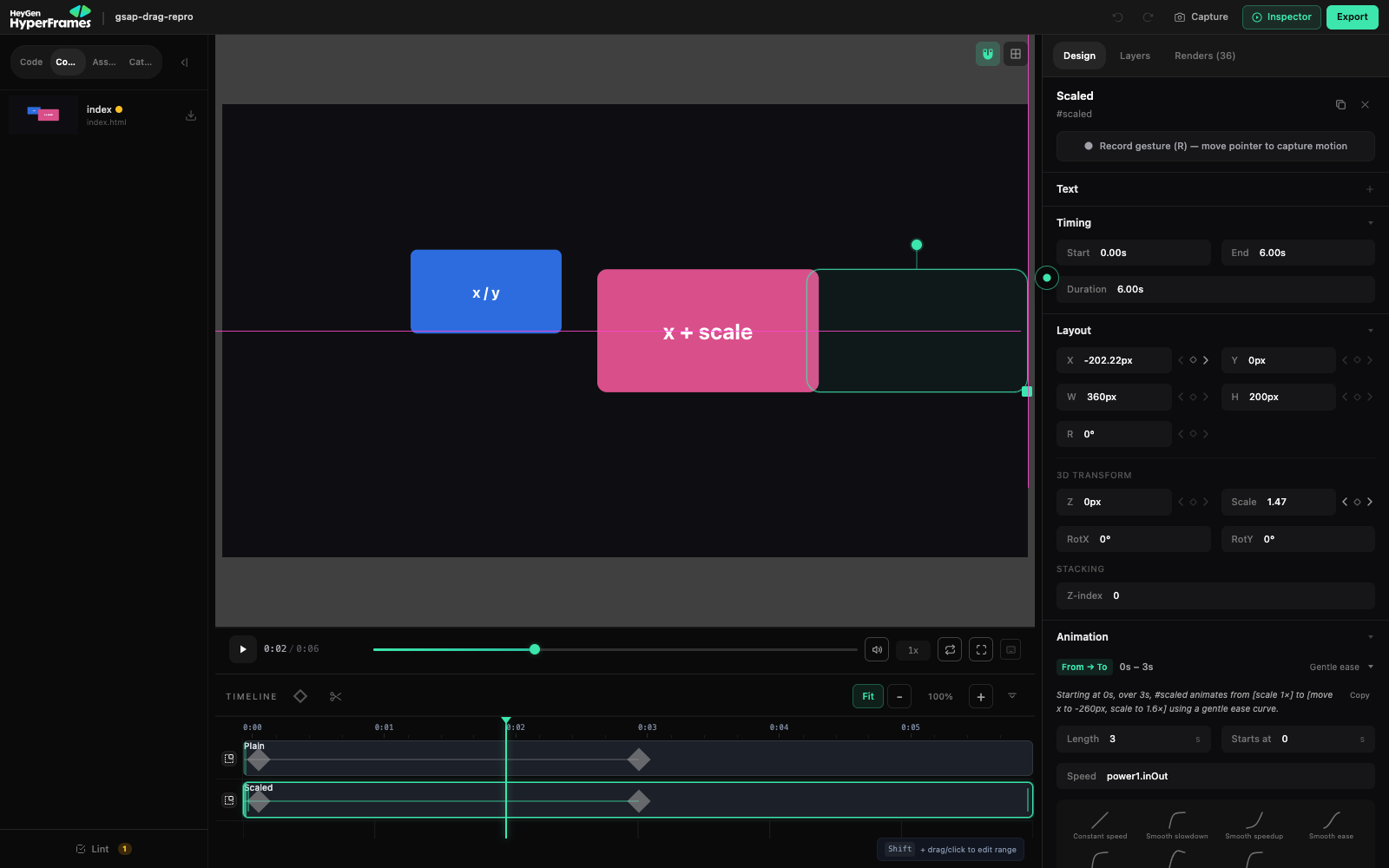

Before (frozen — box separates from element)	After (element tracks the cursor)

Root cause

The composition runtime's per-frame transportTick (packages/core/src/runtime/init.ts) calls seekTimelineAndAdapters(clock.now()) on every animation frame, regardless of play/pause state. During a drag the playhead is paused, but the tick keeps re-seeking the paused timeline to the current frame — re-applying the GSAP-animated value over the draft gsap.set that owns the element during the gesture. The element is rewritten back to its animated position every frame, so it appears frozen; only the selection-box overlay (a separate writer) follows the cursor. On drop, the commit path re-authors the position and lands it correctly.

This is not scale- or matrix-related — confirmed identical on a pure x/y element and an x + scale element; the commit path uses the same offset math and is exactly correct.

Fix

In transportTick, skip the per-frame re-seek when the clock is paused and an element carries the manual-edit gesture marker (data-hf-studio-manual-edit-gesture), so the draft writer stays the last writer for the gestured element:

• Playback is unaffected — the seek always runs while the clock is playing.
• Other elements are unaffected — the playhead does not advance during a paused gesture, so skipping is a no-op for them.
• Resumes automatically the frame the gesture marker clears (drop/cancel).

Verification

• Full @hyperframes/core suite green: 1603 passed, 0 failed; lint + format + typecheck + fallow clean.
• New runtime unit test in init.test.ts that fails without the gate (re-seek fires every frame) and passes with it.
• Browser end-to-end on a minimal repro: mid-drag gsapX now tracks the pointer (−202 → +296 during the drag) instead of freezing; drop result unchanged.

Manual test plan

1. Open a GSAP composition in Studio (a clip whose x/y is animated by a registered window.__timelines timeline).
2. Scrub the playhead to mid-animation (so GSAP holds a live transform).
3. Select the element and drag it slowly.
   • Before: element frozen; only the selection box follows the cursor; jumps to the box on release.
   • After: element tracks the cursor in lockstep with the box; no jump on release.
4. Press play — the element animates normally (playback unaffected).

Notes

• Runtime-only change. The shipped artifact (packages/core/src/generated/runtime-inline.ts) is gitignored and rebuilt by CI.
• Before/after screenshots are hosted on the pr-assets/gsap-drag-preview-freeze branch (kept out of this PR's diff); safe to delete after merge.

[james-russo-rames-d-jusso]

Verified at HEAD 8d42005a. HF runtime-interop / SDK shape / player semantics deferred to Vai's parallel pass; this review covers canonical-rubric angles (correctness, race-safety, regression risk, test coverage, hot-path cost).

Verdict: approve-with-concerns. Fix is surgically scoped to the right call site, gesture lifecycle is solid, programmatic seeks (player.seek, scrub, end-of-clip, init) correctly stay un-gated. Concerns below are non-blocking — one test gap and a minor hot-path cost note worth a follow-up.

---

Concerns

• packages/core/src/runtime/init.ts:2107 — test gap: the new test verifies (a) skip while paused+gesture and (b) resume on marker clear, but does NOT verify the playing branch of clock.isPlaying() || !hasActiveStudioManualEditGesture(). That short-circuit is what guarantees playback is never affected when a gesture marker is somehow still present (e.g. drag-during-play, or a stale marker from a teardown race). Suggest adding a 3-line case:

  // While playing, the re-seek must fire even with the gesture marker present.
  clock.play(); // or however the test scaffold exposes playing state
  const beforePlay = seekTimes.length;
  raf.step(16);
  expect(seekTimes.length).toBeGreaterThan(beforePlay);


  Without it, a regression that flips the || to && would slip through the unit suite.

• packages/core/src/runtime/init.ts:2002 — document.querySelector('[data-hf-studio-manual-edit-gesture]') runs on every transportTick (60fps) regardless of whether a drag is active. Attribute-selector querySelector on a sandbox DOM is fast (~µs on small trees), but on large compositions with hundreds of elements it's a per-frame walk. Negligible today; could become a hot-path nuisance if composition DOMs grow. A boolean ref toggled by begin/endStudioManualEditGesture would be zero-cost, but adds cross-package coupling — fine to defer until a profile flags it. Flagging for awareness, not a blocker.

• packages/core/src/runtime/init.ts:1999 — hasActiveStudioManualEditGesture is global (document.querySelector). If Studio ever hosts multiple compositions side-by-side and a drag is active in composition A, composition B's transport tick also yields. Not a problem in current Studio (single composition at a time), but worth a comment noting the global scope so a future multi-composition refactor doesn't trip over it.

Nits

• packages/core/src/runtime/init.ts:2001 — try/catch around document.querySelector is defensive, but querySelector only throws on invalid selector syntax; the selector here is a static constant. The catch is cheap (zero-cost in V8 if no throw fires) so leaving it is fine, just noting it's belt-and-suspenders.

What looks right

• Gating scope: only the per-frame transportTick re-seek (line 2107) is gated. player.seek (2142), player.renderSeek (2161), end-of-clip clamp (2030), play()-reset (1672), and init seeds are all un-gated — scrub-during-drag and play-during-drag both still work as expected.
• clock.isPlaying() || !hasActiveStudioManualEditGesture() — playback always wins. Only paused + active gesture skips. Correct precedence.
• Gesture marker lifecycle (audited in packages/studio/src/components/editor/useDomEditOverlayGestures.ts + manualOffsetDrag.ts): commit, cancel, blur, escape, and .finally() paths all call endStudioManualEditGesture. Token-based clear prevents stale-token races. No marker-leak risk that would silently freeze playback.
• Skipping the re-seek is genuinely a no-op for non-gestured elements while paused, since clock.now() doesn't advance — the comment block at 2100-2106 captures this correctly.
• HF#1439 (keyframe drag) and HF#1448 (shift-on-drag) drag paths route through the same beginStudioManualEditGesture API, so the fix benefits them too without code changes.

What I didn't verify

• HF runtime-interop / Player API contract semantics — deferred to Vai's parallel pass.
• The browser end-to-end claim in the PR body (mid-drag gsapX -202 → +296). The unit test demonstrates the gating; trust the manual repro for the visual outcome.
• Whether any non-Studio consumer of @hyperframes/core/runtime writes the data-hf-studio-manual-edit-gesture attribute for a different purpose — quick grep showed only Studio's drag paths set it.

Review by Rames D Jusso

[vanceingalls]

LGTM
