[R] Dataset re-partitioning consumes considerable amount of memory #31705

Closed
Closed
[R] Dataset re-partitioning consumes considerable amount of memory#31705
Labels
Component: RType: bug

Description

@asfimport
asfimport
opened on Apr 25, 2022

A short background: I was trying to create a dataset from a big pile of csv files (couple of hundreds). In first step the csv were parsed and saved to parquet files because there were many inconsistencies between csv files. In a consequent step the dataset was re-partitioned using one column (code_key).



new_dataset <- open_dataset(
  temp_parquet_folder,
  format = "parquet",
  unify_schemas = TRUE
  )
new_dataset |>
  group_by(code_key) |>
  write_dataset(
    folder_repartitioned_dataset,
    format = "parquet"
  )



This re-partitioning consumed a considerable amount of memory (5 GB).

  • Is this a normal behavior?  Or a bug?

  • Is there any rule of thumb to estimate the memory requirement for a dataset re-partitioning? (it’s important when scaling up this approach)

    The drawback is that this memory space is not freed up after the re-partitioning  (I am using RStudio).
    The gc() useless in this situation. And there is no any associated object (to the repartitioning) in the R environment which can be removed from memory (using the rm() function).

  • How one can regain this memory space used by re-partitioning?

    The rationale behind choosing the dataset re-partitioning: if my understanding is correct,  in the current arrow version the append is not working when writing parquet files/datasets. (the original csv files were partly partitioned according to a different variable)

    Can you recommend any better approach?

Reporter: Zsolt Kegyes-Brassai / @kbzsl

Original Issue Attachments:

Note: This issue was originally created as ARROW-16320. Please see the migration documentation for further details.

Activity

  1. asfimport commented on Apr 25, 2022

    @asfimport
    asfimport
    on Apr 25, 2022
    Author

    Weston Pace / @westonpace:
    How are you measuring memory used?

    There is a known issue when scanning parquet that it uses more RAM than expected. 8.0.0 should behave a little more reliably. Exactly how RAM is expected depends on the structure of your input files. I'm working on documenting that this week. However, in general, I would estimate a few GB of process RAM to be needed for this operation.

    I would not expect any process memory (e.g. RSS assigned to the process) to remain after the operation. If you are on Linux, we use jemalloc by default, and it is configured so you might need to wait up to 1 second for all the memory to be returned to the OS.

    If you are measuring RAM with a tool like Linux's free then I would also expect you would see a large (potentially all) chunk of RAM move from the free column and into the buf/cache column. That would persist even after the repartitioning is done. However, that RAM should be "available" RAM and this is just kind of how the Linux disk cache works. I'd like to add a solution to do writes with direct I/O at some point which would avoid this.

  2. asfimport commented on Apr 25, 2022

    @asfimport
    asfimport
    on Apr 25, 2022
    Author

    Zsolt Kegyes-Brassai / @kbzsl:
    Hi @westonpace. Thank you for your prompt answer.

    Sorry, I forget to describe the environment: I am using a laptop with 64-bit win10, R 4.1.2 and quite up to date R packages (arrow 7.0.0). I am running my scripts from RStudio IDE.

    I was checking the memory utilization both in the RStudio environment pane and the windows task manager.
    Both are showing around 5.6 GB memory utilization increase: in RStudio from 300 MB to 5.9 GB (the task manager is showing about 250 MB higher – most probably the memory occupied by the IDE).
    There is no (new) visible object in the RStudio Environment which can be associated with this re-partitioning activity.

    And this memory remained occupied until the RStudio session (or the R project) is closed.  I waited for 15 minutes before closing the IDE.

  3. asfimport commented on Apr 26, 2022

    @asfimport
    asfimport
    on Apr 26, 2022
    Author

    Zsolt Kegyes-Brassai / @kbzsl:
    I tried to find what is causing this issue.

    First, I saved my data as a non-partitioned dataset to simplify a bit. It resulted one 617 MB parquet file (having strings, timestamp and integers).

    Then I tried to read and check the memory utilization. I run the code both in RStudio IDE and R Console (RGui).

    The result were the same: a large amount of memory was occupied and not freed up until the IDE or Console was shut down (having 15+ minutes waiting time).

    The occupied memory was much larger (11GB)  than R object size (700 MB) shown by {}obj_size(){}.



    fs::file_size(here::here("db", "large_parquet", "part-0.parquet"))
#> 617M
a = arrow::read_parquet(here::here("db", "large_parquet", "part-0.parquet"))
lobstr::obj_size(a)
#> 721,474,112 B

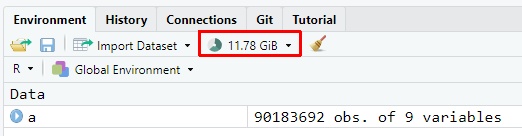

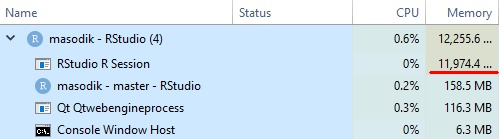

    Here are some screenshots using the IDE



    and the RGui


  4. asfimport commented on Apr 27, 2022

    @asfimport
    asfimport
    on Apr 27, 2022
    Author

    Weston Pace / @westonpace:
    What do you get from the following?


a = arrow::read_parquet(here::here("db", "large_parquet", "part-0.parquet"))
a$nbytes()

    The nbytes function should print a pretty decent approximation of the C memory referenced by a.

    lobstr::obj_size prints only the R memory used (I think).

    fs::file_size is going to give you the size of the file, which is possibly encoded and compressed. Some parquet files can be much larger in memory than they are on disk. So it is not unheard of for a 620MB parquet file to end up occupying gigabytes in memory (11 GB seems a little extreme but within the realm of possibility)

  5. asfimport commented on Apr 27, 2022

    @asfimport
    asfimport
    on Apr 27, 2022
    Author

    Zsolt Kegyes-Brassai / @kbzsl:
    It's an error message:

    a$nbytes()
#> Error: attempt to apply non-function
#> In addition: Warning message:
#> Unknown or uninitialised column: `nbytes`



  6. asfimport commented on Apr 27, 2022

    @asfimport
    asfimport
    on Apr 27, 2022
    Author

    Zsolt Kegyes-Brassai / @kbzsl:
    Hi @westonpace

    I tried to create a reproducible example.

    In the first step I created a dummy dataset wit nearly 100 M rows, having different column types and missing data.
    When writing this dataset to a parquet file I realized, that even the write_parquet() consumes a large amount of memory which is not returned back.

    Here is the data generation part:



    library(tidyverse)
n = 99e6 + as.integer(1e6 * runif(n = 1))
# n = 1000
a =
  tibble(
    key1 = sample(datasets::state.abb, size = n, replace = TRUE),
    key2 = sample(datasets::state.name, size = n, replace = TRUE),
    subkey1 = sample(LETTERS, size = n, replace = TRUE),
    subkey2 = sample(letters, size = n, replace = TRUE),
    value1 = runif(n = n),
    value2 = as.integer(1000 * runif(n = n)),
    time = as.POSIXct(1e8 * runif(n = n), tz = "UTC", origin = "2020-01-01")
  ) |>
  mutate(
    subkey1 = if_else(key1 %in% c("WA", "WV", "WI", "WY"),
                      subkey1, NA_character_),
    subkey2 = if_else(key2 %in% c("Washington", "West Virginia", "Wisconsin", "Wyoming"),
                      subkey2, NA_character_),
  )
lobstr::obj_size(a)
#> 5,177,583,640 B

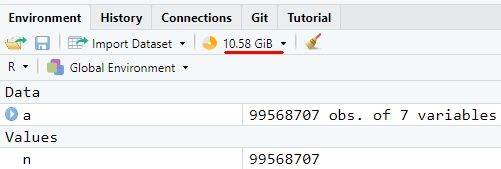

    and the memory utilization after the dataset creation

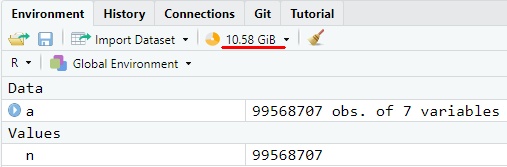

    and writing to rds file

    readr::write_rds(a, here::here("db", "test100m.rds"))

    no visible memory utilization increase

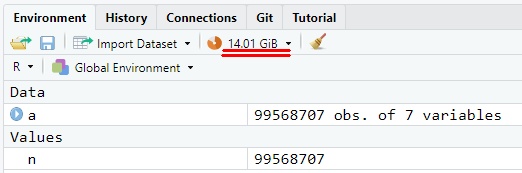

    and writing to parquet file

    arrow::write_parquet(a, here::here("db", "test100m.parquet"))

    there is a drastic increase in memory utilization 10.6 GB -> 15 GB - just for writing the file

    It looks that this memory amount consumed during writing the parquet file was not returned back even after 15 minutes.

    My biggest concern is that the ability to handle datasets larger than the available memory seems increasingly remote.
    I consider that this is a critical bug, but it might happen that is affecting only me… as I don’t have possibility to test elsewhere.

  7. asfimport commented on Apr 27, 2022

    @asfimport
    asfimport
    on Apr 27, 2022
    Author

    Zsolt Kegyes-Brassai / @kbzsl:

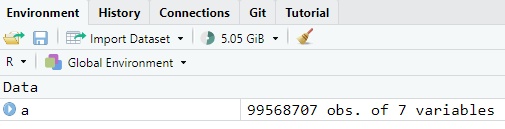

    And here is the result of the reading back these files.



    a = readr::read_rds(here::here("db", "test100m.rds"))
lobstr::obj_size(a)
#> 5,177,583,640 B






    a = arrow::read_parquet(here::here("db", "test100m.parquet"))
lobstr::obj_size(a)
#> 796,553,696 B




    This time there is no considerable difference in the memory utilization.

    It’s a bit hard for me to understand when additional memory is used for parquet activities, but more important when this memory amount is returned and when is not (and what can trigger it).

    Sorry, I am a bit puzzled. It might happen that this is not an bug, just lack in my understanding.

  8. asfimport commented on Apr 28, 2022

    @asfimport
    asfimport
    on Apr 28, 2022
    Author

    Weston Pace / @westonpace:
    The writing behavior you described seemed odd so I modified your script a little (and added a memory print which, sadly, will only work on Linux):


>
> print_rss <- function() {
+   print(grep("vmrss", readLines("/proc/self/status"), ignore.case=TRUE, value=TRUE))
+ }
>
> n = 99e6 + as.integer(1e6 * runif(n = 1))
> a =
+   tibble(
+     key1 = sample(datasets::state.abb, size = n, replace = TRUE),
+     key2 = sample(datasets::state.name, size = n, replace = TRUE),
+     subkey1 = sample(LETTERS, size = n, replace = TRUE),
+     subkey2 = sample(letters, size = n, replace = TRUE),
+     value1 = runif(n = n),
+     value2 = as.integer(1000 * runif(n = n)),
+     time = as.POSIXct(1e8 * runif(n = n), tz = "UTC", origin = "2020-01-01")
+   ) |>
+   mutate(
+     subkey1 = if_else(key1 %in% c("WA", "WV", "WI", "WY"),
+                       subkey1, NA_character_),
+     subkey2 = if_else(key2 %in% c("Washington", "West Virginia", "Wisconsin", "Wyoming"),
+                       subkey2, NA_character_),
+   )
> lobstr::obj_size(a)
5,171,792,240 B
> print("Memory usage after creating the tibble")
[1] "Memory usage after creating the tibble"
> print_rss()
[1] "VmRSS:\t 5159276 kB"
>
>
> readr::write_rds(a, here::here("db", "test100m.rds"))
> print("Memory usage after writing rds")
[1] "Memory usage after writing rds"
> print_rss()
[1] "VmRSS:\t 5161776 kB"
>
>
> arrow::write_parquet(a, here::here("db", "test100m.parquet"))
> print("Memory usage after writing parquet")
[1] "Memory usage after writing parquet"
> print_rss()
[1] "VmRSS:\t 8990620 kB"
> Sys.sleep(5)
> print("And after sleeping 5 seconds")
[1] "And after sleeping 5 seconds"
> print_rss()
[1] "VmRSS:\t 8990620 kB"
> print(gc())
            used   (Mb) gc trigger    (Mb)   max used   (Mb)
Ncells    892040   47.7    1749524    93.5    1265150   67.6
Vcells 647980229 4943.7 1392905158 10627.1 1240800333 9466.6
> Sys.sleep(5)
> print("And again after a garbage collection and 5 more seconds")
[1] "And again after a garbage collection and 5 more seconds"
> print_rss()
[1] "VmRSS:\t 5377900 kB"

    Summarizing...


Create table
~5.15GB RAM used
Write RDS
~5.16GB RAM used
Write Parquet
~9GB RAM used
Wait 5 seconds
~9GB RAM used
Run garbage collection
Wait 5 seconds
~5.38GB RAM used

    This doesn't seem terribly ideal. I think, after writing, some R objects are holding references (possibly transitively) to some shared pointers to record batches in C++. When the garbage collection runs those R objects are destroyed and the shared pointers (and buffers) can be freed.

  9. thisisnic commented on Oct 26, 2026

    @thisisnic
    thisisnic
    on Oct 26, 2026
    Member

    Closing this as it dates from arrow 7.0.0 and the dataset writer has changed substantially since then (writer backpressure in 16.0.0 via #40224, and the remaining parquet pre-buffer memory retention is tracked in #39808). If memory still grows without bound during write_dataset() on a current release please open a new issue with a reprex.

  10. thisisnic
    closed this as completedon Oct 26, 2026
