[Bug] PD /v1/health reports healthy without a raft quorum; add a quorum-aware readiness signal

[bitflicker64]

Bug Type (问题类型)

logic (逻辑设计问题)

Before submit

• I have confirmed and searched that there are no similar problems in the historical issues and documents

Environment (环境信息)

• Server Version: master (98477f0), so this lands in 1.8.0
• Backend: hstore, 3 PD x 3 Store x 3 Server on Kubernetes (Helm chart from feat(helm): add HStore deployment chart #3132), PD image hugegraph/pd built from the same commit
• OS: kubeadm 1.34 cluster, 3 worker nodes, Ubuntu 24.04
• Data Size: n/a, the problem is in cluster membership, not data

Expected & Actual behavior (期望与实际表现)

Expected. A PD that cannot take part in raft (no leader, or fewer than a quorum of members reachable) should not report itself as ready. Anything that gates on PD health, whether a Store waiting to register, wait-storage.sh on the Server, or a Kubernetes readiness probe, should be held back until the PD can actually serve.

Actual. /v1/health answers 200 as soon as the Spring listener is up and never consults the raft state. In hugegraph-pd/hg-pd-service/.../rest/StoreAPI.java:

@GetMapping(value = "/health", produces = MediaType.TEXT_PLAIN_VALUE)
public Serializable checkHealthy() {
    return "";
}

Measured on a 3-PD cluster after deleting two of the three PD pods: the survivor logged Raft lost leader within one second of the fault and then kept answering 200 to /v1/health on every one of 26 samples over about 166 seconds, while calls that need a leader failed for roughly 50 seconds until the replacements rejoined. Same process, same second, two different answers.

Everything that consumes /v1/health inherits the mismatch:

• bin/wait-storage.sh on the Server (after fix(server): retry all PD peers while waiting for storage #3129 it retries every peer, which fixed the fail-over, but a 200 from any peer still counts as "PD is up").
• The Store's wait for PD before it registers.
• In the Helm chart, the startup, readiness and liveness probes on both PD and Store, and the Store init gate that waits for a quorum of PDs. That gate can release Stores against a PD that has no leader.

I looked for something else to build a real gate on and did not find an unauthenticated option:

• /actuator/prometheus exposes hg_up, hg_stores, hg_terms and hg_graphs. There is no leader flag and no member count, and hg_terms read 0 on a live leader, so it cannot stand in for one.
• /v1/members does carry what is needed (pdLeader with role and state, plus the member list) but it sits behind the REST auth interceptor. A kubelet probe cannot send a credential and should not have to.

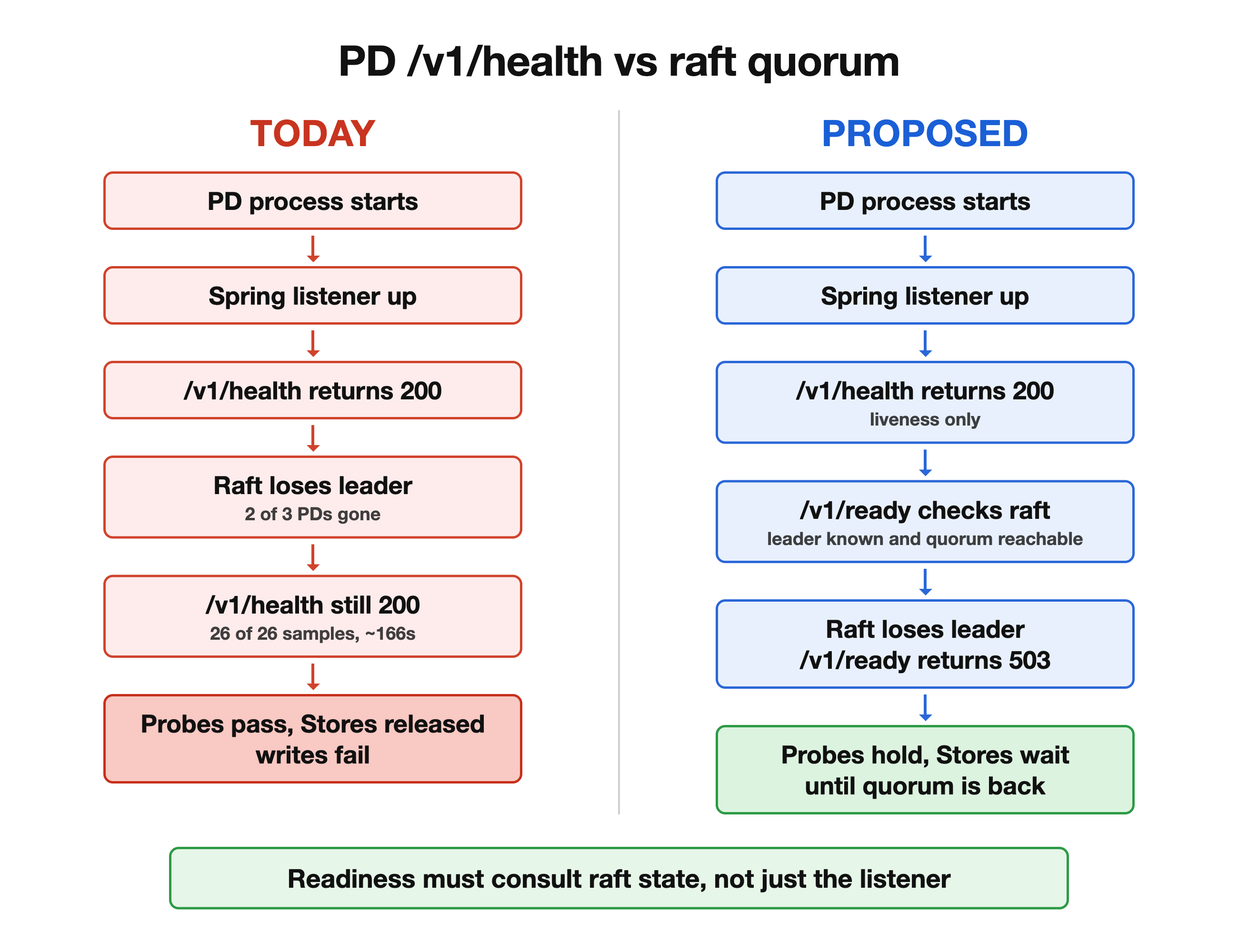

Proposal

Any of these would close the gap, listed in order of how little they change:

1. Make /v1/health return a non-2xx status when the local node has no raft leader or is not part of a quorum. This is the smallest change but it turns a liveness signal into a readiness one, which may not be what every caller wants.
2. Keep /v1/health as pure liveness and add an unauthenticated /v1/ready (or /v1/health?ready=true) that returns 200 only when the node has a leader and is inside a quorum. The Helm chart and wait-storage.sh would switch to it.
3. Independently of 1 or 2, add a raft leader gauge (1 on the leader, 0 elsewhere) and a reachable-member count to the actuator metrics so operators can alert on quorum loss.

Option 2 plus 3 seems like the right shape. Happy to send a PR for whichever direction is preferred.

Related

• [Bug] wait-storage.sh binds to the first PD answering /v1/health and never fails over to other peers #3123 and fix(server): retry all PD peers while waiting for storage #3129 fixed wait-storage.sh sticking to one peer. This issue is the remaining half: the signal it now polls on every peer does not mean what the script needs it to mean.
• The Helm chart in feat(helm): add HStore deployment chart #3132 documents this as a limitation and keeps all probes on /v1/health until a quorum-aware endpoint exists.

[dosubot]

@bitflicker64 — your analysis checks out against the code on master. checkHealthy() returns a bare empty 200 with zero raft awareness [1], exactly as you described.

The building blocks for a quorum-aware endpoint already exist in RaftEngine:

• isLeader() gives a per-node "am I the leader" check, and getLeader() → raftNode.getLeaderId() tells whether the node knows who the leader is at all.
• getMembers() is what backs /v1/members today — it lists peers, resolves their gRPC addresses, and tags each with a role and state. That endpoint sits behind auth because the interceptor exclusion list only covers /actuator/*, /v1/health, and /v1/prom/targets/*.
• On the metrics side, PDMetrics.registerMeters() registers only hg.up (hardcoded to 1), hg.graphs, hg.stores, and hg.terms. There is no leader gauge and no reachable-member count. hg.terms is a partition-term counter (setTerms()), not a raft-quorum signal, confirming it can't substitute for one.

This is the continuation of the gap flagged in #3123, which explicitly suggested "splitting liveness from readiness… with readiness backed by something raft-aware such as RaftEngine.getLeaderGrpcAddress()" [2]. #3129 then fixed the wait-storage.sh peer-pinning problem by probing /v1/stores across every peer on each retry [3], but as you note that only fixed peer stickiness — a storeless/leaderless PD still answers 200 to /v1/health.

A related effort in #3136 requests raft-lag and recovery metrics on the Store side [4], which is a good precedent for how a leader/quorum gauge could be shaped on PD, though it doesn't cover PD's own raft state. I didn't find an existing PR or issue that adds the /v1/ready endpoint or the leader/quorum gauges specifically, so this appears to be new ground.

Given that isLeader(), getLeader(), and getMembers() already exist in RaftEngine, option 2 (a dedicated unauthenticated /v1/ready) looks straightforward — it would call those existing methods and skip auth the same way /v1/health already does. Pairing that with option 3 (a hg.pd.leader gauge and a hg.pd.reachable_members counter in PDMetrics) would give both the programmatic readiness gate and the alerting signal operators need.
